Pressure Die Castings
Die casting is a versatile process for producing engineered metal parts by forcing molten metal under high pressure into reusable steel molds. These molds, called dies, can be designed to produce complex shapes with a high degree of accuracy and repeatability. Parts can be sharply defined, with smooth or textured surfaces, and are suitable for a wide variety of attractive and serviceable finishes.

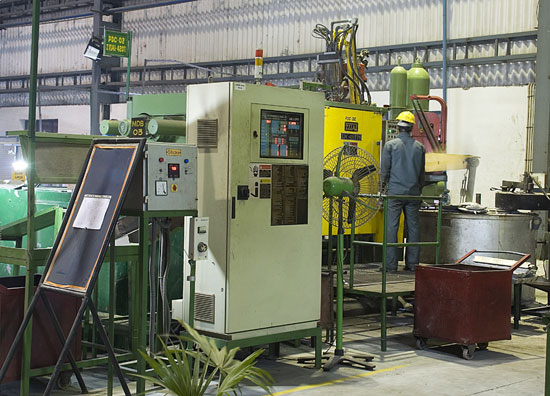

250 TONS HPDC MACHINE with auto ladle/auto spray facility Make ZITAI.
Pressure Die Casting 250 TONS HPDC MACHINE
  • Locking force: 250Ton
  • Die height: 250-650mm
  • Tie bar distance: 580x580mm
  • Max. weight of shot: 2.55kgf
  • Max. casting area: 406cm2
  • Horsepower required: 30KVA

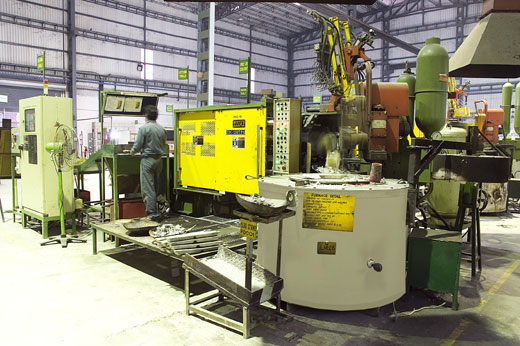

420 TON HPDC MACHINE with auto ladle/auto spray facility make ZITAI.

Pressure Die Casting 420 TON HPDC MACHINE   Pressure Die Casting line
  • Locking force: 420Ton
  • Die height: 300-700mm
  • Tie bar distance: 650x650mm
  • Max. weight of shot: 4.0kgf
  • Max. casting area: 760cm2
  • Horsepower required: 40KVA


400 TON HPDC MACHINE Make BUHLER 2 Nos.

Pressure Die Casting
  • Locking force: 400Ton
  • Die height: 300-700mm
  • Tie bar distance: 650x650mm
  • Max. weight of shot: 4.0kgf
  • Max. casting area: 760cm2
  • Horsepower required: 40KVA
